# Using the preCICE library

Coupling two toy Python solvers

vvv

## Dependencies

- [preCICE](https://precice.org/installation-overview.html) v3 (e.g. [packages for Ubuntu](https://github.com/precice/precice/releases))
                        - Python 3
                        - Python packages `numpy`, `matplotlib`
                        - [preCICE Python bindings](https://precice.org/installation-bindings-python.html):
                           ```bash
                           pip3 install --upgrade pip
                           python3 -m venv .venv && . .venv/bin/activate
                           pip3 install pyprecice
                           ```

                        ---

## "Generator" and "Propagator"

- `generator.py`: generates random data in a 1D domain
                        - `propagator.py`: propagates boundary data over a 2D domain
                        </div>

</div>

---

## Unidirectional coupling

<img data-src="images/level1/serial-explicit.svg" style="border:none; box-shadow:none; max-width:80%;">

                        ---

## generator.py

```python
                        import numpy

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

dt = 0.01
                        t = 0

while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          t = t + dt
                          if(t > 0.1):
                            break
                        ```

vvv

## propagator.py

```python
                        # generate mesh
                        n = 20
                        x = numpy.linspace(0, 1, n+1)
                        y = numpy.linspace(0, 1, n+1)

# initial data, associated to cell centers
                        u = numpy.zeros([n, n])

dt = 0.01
                        t = 0

# boundary condition for u (arbitrary)
                        u[:,-1] = y[:-1]

while True:

                          print("Propagating data")
                          # some (arbitrary) convection-diffusion rule
                          # top row
                          u[0, :-1] = 0.3 * u[0, :-1] + 0.6 * u[0, 1:] + 0.1 * u[1, :-1]
                          # inner domain
                          u[1:-1, :-1] = 0.2 * u[1:-1, :-1] + 0.6 * u[1:-1, 1:] + 0.1 * u[2:, :-1] + 0.1 * u[:-2, :-1]
                          # bottom row
                          u[-1, :-1] = 0.3 * u[-1, :-1] + 0.6 * u[-1, 1:] + 0.1 * u[-1, :-1]

t = t + dt
                          if(t > 0.2):
                            break
                        ```

Uncoupled simulation

Import preCICE


                        import numpy


                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        dt = 0.01
                        t = 0

                        while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          t = t + dt
                          if(t > 0.1):
                            break

Import preCICE


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        dt = 0.01
                        t = 0

                        while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          t = t + dt
                          if(t > 0.1):
                            break

Configure preCICE


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                               participant_name,
                                               config_file_name,
                                               solver_process_index,
                                               solver_process_size
                                             )

                        dt = 0.01
                        t = 0

                        while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          t = t + dt
                          if(t > 0.1):
                            break

Define the coupling mesh


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                               participant_name,
                                               config_file_name,
                                               solver_process_index,
                                               solver_process_size
                                             )

                        # Define the coupling mesh name
                        mesh_name  = "Generator-Mesh"

                        # Define the coupling mesh
                        positions = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_name, positions)

                        dt = 0.01
                        t = 0

                        while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          t = t + dt
                          if(t > 0.1):
                            break

Initialize and finalize preCICE


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                               participant_name,
                                               config_file_name,
                                               solver_process_index,
                                               solver_process_size
                                             )

                        # Define the coupling mesh name
                        mesh_name = "Generator-Mesh"

                        # Define the coupling mesh
                        positions  = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_name, positions)

                        participant.initialize()

                        dt = 0.01
                        t = 0

                        while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          t = t + dt
                          if(t > 0.1):
                            break

                        participant.finalize()

Advance the coupling


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                              participant_name,
                                              config_file_name,
                                              solver_process_index,
                                              solver_process_size
                                            )

                        # Define the coupling mesh name
                        mesh_name = "Generator-Mesh"

                        # Define the coupling mesh
                        positions = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_name, positions)

                        participant.initialize()

                        dt = 0.01
                        t = 0

                        while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)



                          t = t + dt
                          if(t > 0.1):
                            break

                        participant.finalize()

Advance the coupling


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                              participant_name,
                                              config_file_name,
                                              solver_process_index,
                                              solver_process_size
                                            )

                        # Define the coupling mesh name
                        mesh_name = "Generator-Mesh"

                        # Define the coupling mesh
                        positions = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_name, positions)

                        participant.initialize()

                        dt = 0.01
                        t = 0

                        while True:
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          participant.advance(dt)

                          t = t + dt
                          if(t > 0.1):
                            break

                        participant.finalize()

Advance the coupling


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                              participant_name,
                                              config_file_name,
                                              solver_process_index,
                                              solver_process_size
                                            )

                        # Define the coupling mesh name
                        mesh_name = "Generator-Mesh"

                        # Define the coupling mesh
                        positions = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_name, positions)

                        participant.initialize()

                        dt = 0.01
                        t = 0

                        while participant.is_coupling_ongoing():
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          participant.advance(dt)

                          t = t + dt



                        participant.finalize()

Advance the coupling


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                              participant_name,
                                              config_file_name,
                                              solver_process_index,
                                              solver_process_size
                                            )

                        # Define the coupling mesh name
                        mesh_name = "Generator-Mesh"

                        # Define the coupling mesh
                        positions = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_name, positions)

                        participant.initialize()

                        dt = 0.01
                        t = 0

                        while participant.is_coupling_ongoing():
                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          participant.advance(dt)
                          precice_dt = participant.get_max_time_step_size()

                          t = t + dt



                        participant.finalize()

Not there yet, but let's run it
(similar changes in propagator.py - try it at home)

Nothing happening?

Steering works. But did we forget something?

Write & read data


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                               participant_name,
                                               config_file_name,
                                               solver_process_index,
                                               solver_process_size
                                             )

                        # Get the preCICE mesh name
                        mesh_name  = "Generator-Mesh"

                        # Define the coupling mesh
                        positions = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_name, positions)





                        participant.initialize()
                        precice_dt = participant.get_max_time_step_size()

                        dt = 0.01
                        t = 0

                        while participant.is_coupling_ongoing():
                          dt = np.minimum(dt, precice_dt)

                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)


                          participant.advance(dt)
                          precice_dt = participant.get_max_time_step_size()


                          t = t + dt

                        participant.finalize()

Write & read data


                        import numpy
                        import precice

                        # generate mesh
                        n = 20
                        y = numpy.linspace(0, 1, n + 1)

                        # preCICE setup
                        participant_name     = "Generator"
                        config_file_name     = "../precice-config.xml"
                        solver_process_index = 0
                        solver_process_size  = 1
                        participant =
                            precice.Participant(
                                               participant_name,
                                               config_file_name,
                                               solver_process_index,
                                               solver_process_size
                                             )

                        # Get the preCICE mesh name
                        mesh_name  = "Generator-Mesh"

                        # Define the coupling mesh
                        positions = [[1, y0] for y0 in y[:-1]]
                        vertex_ids = participant.set_mesh_vertices(mesh_id, positions)

                        # Get the exchanged data name
                        data_name = "Color"

                        participant.initialize()

                        dt = 0.01
                        t = 0

                        while participant.is_coupling_ongoing():
                          dt = np.minimum(dt, precice_dt)

                          print("Generating data")
                          u = 1 - 2 * numpy.random.rand(n)

                          participant.write_data(mesh_name, data_name, vertex_ids, u)
                          precice_dt = participant.advance(dt)
                          # u[:, -1] = participant.read_data(mesh_name, data_name, vertex_ids, dt)

                          t = t + dt

                        participant.finalize()

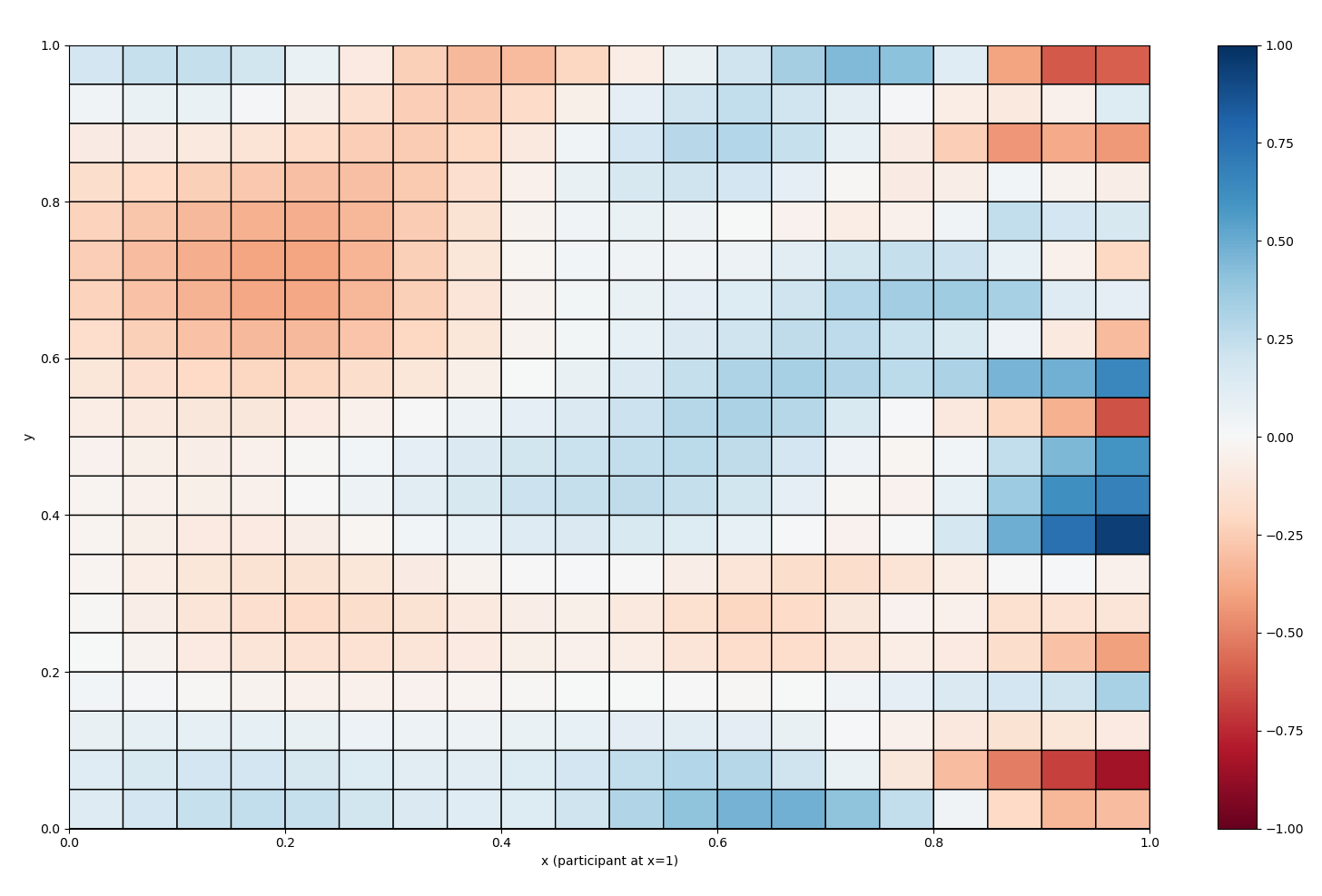

It should work now!

Data is being transfered!

Most basic case: uni-directional, serial-explicit, nearest-neighbor mapping, ...

preCICE configuration

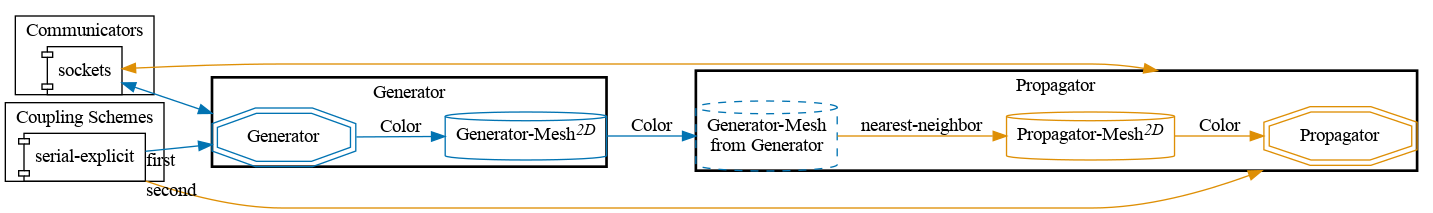

Visual representation of the precice-config.xml

Visual representation of precice-config.xml using the config visualizer.
